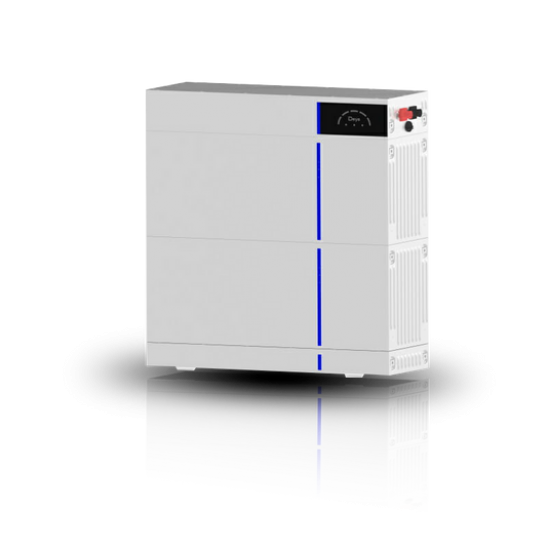

Description of the battery DEYE AL-W10.2kWh LV, 200aH, 51.2V
The DEYE AL-W10.2kWh LV battery pack is a high-tech energy storage system with a capacity of 200Ah and a nominal voltage of 51.2V that provides efficient backup power for your home or business.

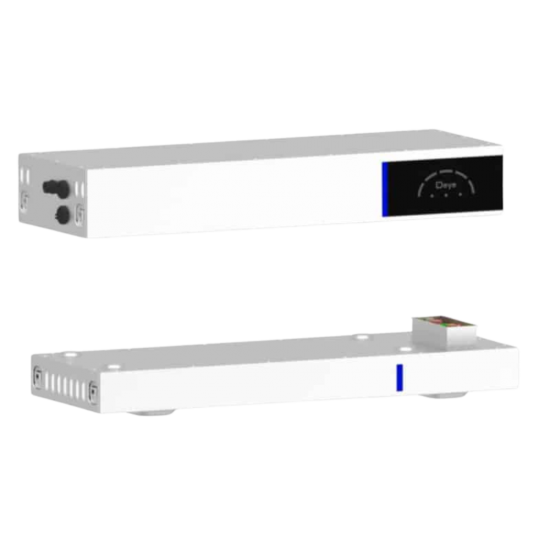

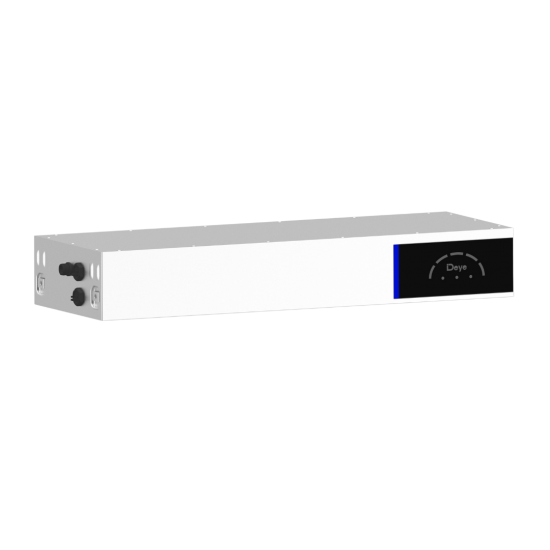

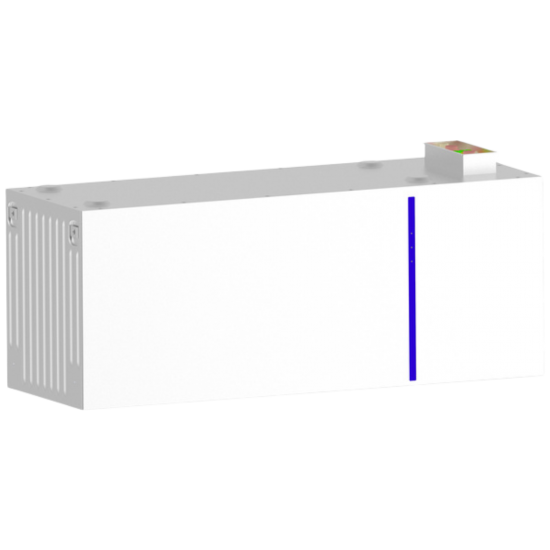

The system is based on two Deye AI-W5.1 battery modules and a BMS AI-W5.1-PDU1 controller. Each module has a useful capacity of 5.12 kWh, which gives a total energy reserve of 10.24 kWh. All elements are connected to a single network through the AL-W5.1-Base battery base, which ensures reliable operation of the system at a current of up to 200A.
This kit supports the parallel connection of up to 36 battery modules, which increases the total capacity to 184 kWh. The discharge depth reaches 90% and the service life is up to 15 years. The battery has a built-in intelligent BMS system that protects the device from overloads and guarantees stable operation.
Compatibility with a wide range of inverters makes DEYE AL-W10.2kWh LV a universal solution for domestic and commercial use. The design provides for indoor installation, the protection level is IP65. The device operates at temperatures from -20°C to +55°C, relative humidity 5%–95%.
Main advantages:
- Modular design for flexible scaling
- Discharge depth up to 90%
- 6000 charge/discharge cycles
- The maximum system is up to 36 modules
- Built-in BMS AI-W5.1-PDU1
- Support for intelligent control
Technical characteristics:
| Battery capacity | 200 Ah |
| Rated voltage | 51.2 В |
| Battery type | LiFePo4 |
| Number of cycles | 6000 |
| Charge current | 200 A |
| Operating temperature | -20…+55 °C |
| Dimensions | 720×255×765 mm |
| Weight | 90 kg |
| Housing protection | IP65 |
| Warranty | 10 years |
Contact us for a consultation – we will help you find the best solution for your system!
