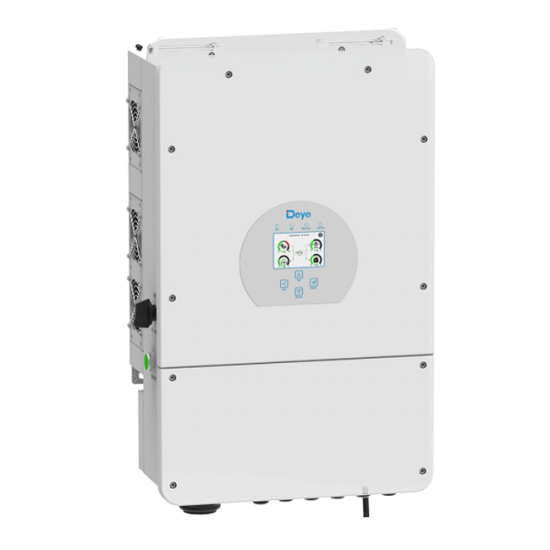

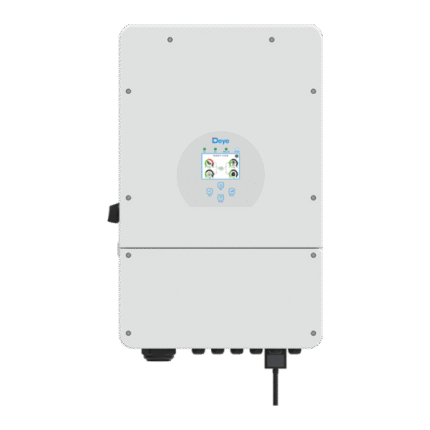

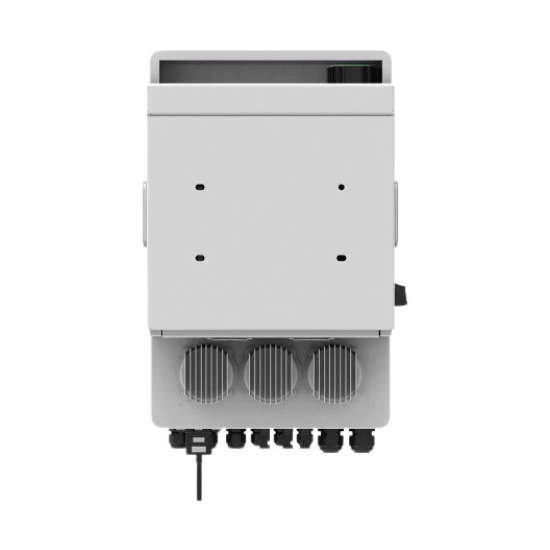

The hybrid inverter Deye SUN-12KSG04LP3-EU with a power output of 12 kW is a three-phase solution for comprehensive energy supply to residential properties, commercial sites, and industrial facilities. Its hybrid architecture allows simultaneous operation with the grid, solar panels, and battery storage, enabling the creation of an efficient autonomous or backup power system.
This model features two MPPT trackers with a wide voltage range from 300 to 800 V, allowing flexible connection of solar panels with various orientations and configurations. The inverter supports battery systems operating at 40–60 V, including lithium-ion and lead-acid batteries.
The IP65-rated housing, high efficiency, and ability to operate in harsh climatic conditions make the Deye SUN-12KSG04LP3-EU a reliable choice for long-term solar projects.
Advantages of Deye SUN-12KSG04LP3-EU:
- 12 kW of power for three-phase power systems;
- Hybrid operation with grid, solar panels, and batteries;
- 2 MPPT trackers with a wide voltage range (300–800 V);
- Support for 40–60 V battery systems;
- IP65 protection and a 5-year official manufacturer warranty.
Choose the Deye SUN-12KSG04LP3-EU for a reliable and energy-independent future.
| Specifications | Value |
|---|---|
| Manufacturer | Deye |
| Country of origin | China |
| Model | SUN-12KSG04LP3-EU |
| Inverter type | Hybrid |
| Inverter power, kW | 12 |
| Number of phases | 3 (three-phase) |
| Output voltage | 380 V / 50 Hz |
| Number of MPPT trackers | 2 |
| MPPT voltage range, V | 300–800 |
| Battery support | Yes |
| Battery operating voltage, V | 40–60 |
| Supported battery types | Lithium-ion, lead-acid |
| Max. PV input voltage, V | 1000 |
| Max. current per MPPT, A | 26 |
| Operating temperature range, °C | -25…+60 |
| Protection rating | IP65 |
| Warranty period | 5 years |
